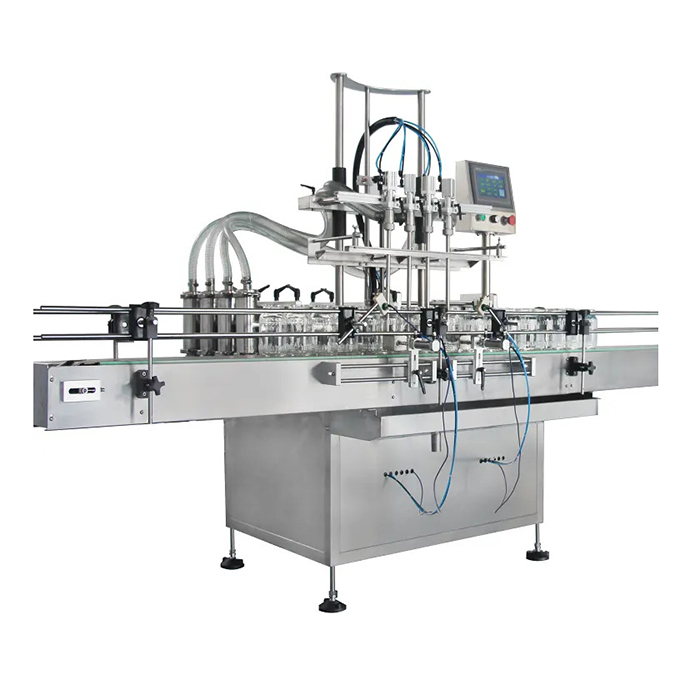

4 galviņu automātiskā šķidrās pudeles pildīšanas mašīna

Mājas / Uzpildes mašīnas / Pudeļu pildīšanas mašīna / 4 galviņu automātiskā šķidrās pudeles pildīšanas mašīna

4 galviņu automātiskā šķidrās pudeles pildīšanas mašīna

Pielietojumi:


4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.

Princips un iezīme:


The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .

Raksturīgs:

1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.

2. This machine is compact design, streamline bottle conveying, more stable.

3. No bottle no fill function.

4. Auto frequency conversion adjusting speed.

5. Auto display and count.

6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.

7. One machine can auto entry, filling adding capper, and sealing.

8. The whole machine is designed according to the requirements of GMP.

Galvenās tehniskās specifikācijas


Uzpildes galviņu skaits4 galvas
Vīšanas galvu skaitsViena galva
Uzpildes diapazons20 ~ 1000 ml
Klāsts perfekts20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
Pārsega izvēlePretdurvju vāks, skrūvējams vāks, ROPP alumīnija vāks
Ražošanas jauda2400 ~ 3000 (pudeles / stundā)
Izmēriet precizitāti≤ ± 1
Atbalstāmo likme≥99
Jauda220 V 50/60 Hz
Kopējā jauda≤1,2kw
Gaisa spiediens0,4 ~ 0,6 MPa
Svars
800 kg
Ārējie izmēri (mm)2000 × 1200 × 1600

Īsa informācija


Tips: uzpildes mašīna
Stāvoklis: Jauns
Pielietojums: dzērieni, ķīmiski, medicīniski
Iepakojuma veids: pudeles
Automātiska pakāpe: Automātiska
Piedziņas tips: elektrisks
Spriegums: 220V / 110V 50 / 60Hz
Jauda: ≤1,2KW
Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Zīmols: NPACK
Izmērs (L * W * H): 2000 * 1200 * 1600mm
Svars: 800kg
Sertifikācija: LRP
Sniedz pēcpārdošanas servisu: Inženieri ir pieejami mašīnu apkopei ārzemēs
Produkta nosaukums: šķidrās pudeles pildīšanas mašīna
Pildījuma diapazons: 20 ~ 1000ml
Ideāls diapazons: 20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
Ražošanas jauda: 2400 ~ 3000 (pudeles / stundā)
Izmēriet precizitāti: ≤ ± 1
Atbilstīgo likme: ≥99
The choice of cover: Burglarproof cover, screw cover


A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.

The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.

The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.

The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.

In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
