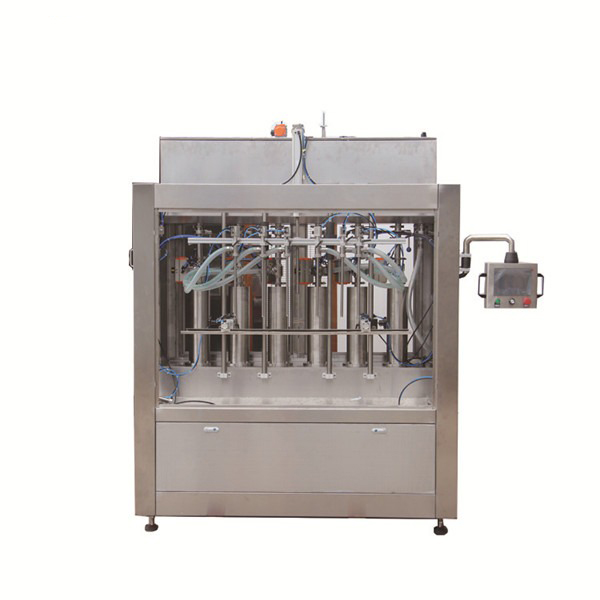

Trauku mazgāšanas šķidruma pildīšanas mašīna

Mājas / Uzpildes mašīnas / Trauku mazgāšanas šķidruma pildīšanas mašīna

Trauku mazgāšanas šķidruma pildīšanas mašīna
A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Specifikācijas


trauku mazgāšanas šķidruma iepildīšanas mašīna
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Apraksts


ES CE
ISO9001
Atbilst GMP prasībām
longlife of service, low mainteinance rate

Galvenā funkcija


Mašīna ir uzlabota augstas precizitātes uzpildes iekārta, kas var automātiski pabeigt pudeļu skaitīšanas, iepildīšanas un aizvēršanas procesu.

Iespējas

1. Kompakts, strukturēts, izskatīgs, viegli darbināms un augsti automatizēts.

2. detaļas, kas saskaras ar materiālu, ir izgatavotas no nerūsējošā tērauda, viegli tīrāmas.

3. Lai nodrošinātu precizitāti, uzpildes daudzumu kontrolē ar plēves vārstiem.

4. Ātrgaitas un ļoti precīzi iepildes vārsti nodrošina noplūdi.

5. Tas ir aprīkots ar ļoti efektīvu vāciņu padeves sistēmu.

Valodas opcija

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Galvenās īpašības:


1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Var iegaumēt daudzus parametrus, kas ir noderīgi, mainot dažādas specifikācijas, visu aizpildīšanas devu var pielāgot ar skārienekrānu.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Galvenais tehniskais parametrs


VienumsVārdsTehniskais parametrs
01Mašīnas izmērs (L * W * H)2200mm * 1400mm * 2800mm
02Mašīnas svarsApmēram 1400 kg
03Tvertnes atveres iekšējais diametrs≥φ35mm
04

Piemērots konteiners

1Liter .2Liter
05Konteinera augstums80-350mm
06

Enerģijas padeve

Maiņstrāva 380V; 50 HZ
07Jauda5Kw
08Aizpildīšanas precizitāte≤ ± 1%
09Gaisa avots0,6Mpa stabils un tīrs saspiests gaiss
11Uzpildes sprauslu skaits13
12Konveijera augstums900 mm ± 50 mm
13ietilpība≤3200 pudeles stundā (ņem ūdeni kā testu)
14Pudele padeves virzienāNo kreisās uz labo pusi

Īsa informācija


Tips: uzpildes mašīna
Stāvoklis: Jauns
Pielietojums: ķīmisks
Iepakojuma veids: pudeles
Iepakojuma materiāls: koks
Automātiska pakāpe: Automātiska
Piedziņas tips: Pneimatiska
Spriegums: 220v
Jauda: 3KW
Izcelsmes vieta: Šanhaja. Ķīna (kontinentālā daļa)
Zīmols: NPACK
Izmērs (L * W * H): 2200mm * 1400mm * 2800mm
Svars: 1400
Sertifikācija: CE
Sniedz pēcpārdošanas servisu: Inženieri ir pieejami mašīnu apkopei ārzemēs
materiāls: SS304
PLC: Panasonic
Skārienekrāns: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
